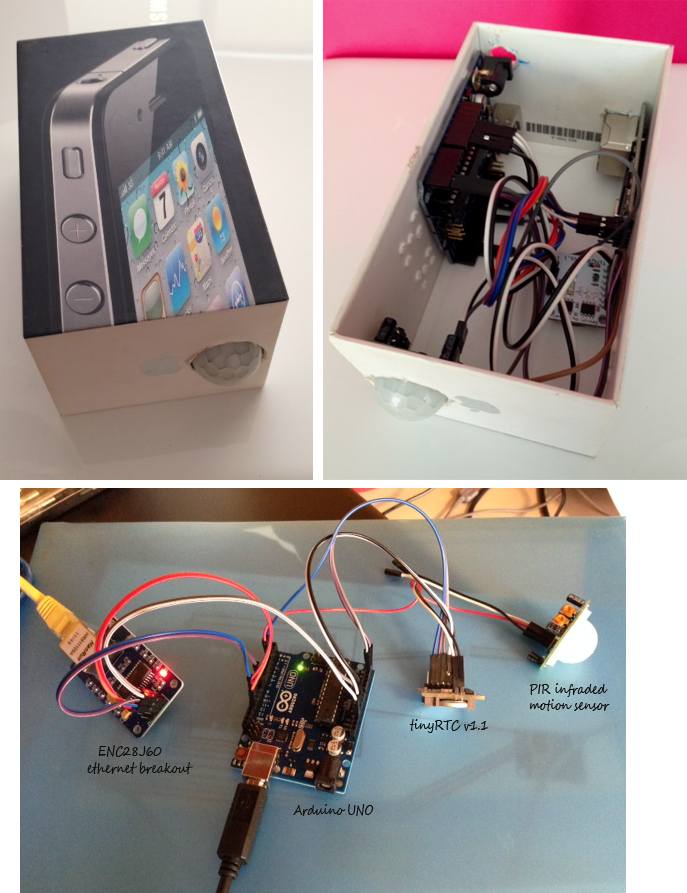

• Arduino UNO (CPU board and power supply)
• PIR Infrared 6m movement/ presence sensor
• Real time clock module ( TinyRTC v1.1 design by waiman)
• ENC28J60 ethernet breakout

  Pardawl alarm --> your ProwPHP page --> Prowl server --> Apple --> your iPhone

...
   // You can ADD up to 5 api keys
   // This is a Test Key, please use your own.
   $oMsg->addApiKey('123456789abcdef123456789abcdef123456789abcdef');   //  <-- Use your Prowl API key goes here
   $oMsg->setEvent('My Alarm!');                                        //  <-- Notification title
   //optional
   $oMsg->setDescription('Alarm: Intruder in myOffice!!');              //  <-- Notification message
   $oMsg->setApplication('Pardawl alarm');                              //  <-- application name

c:\>ipconfig [Enter]

// Pardawl - Intrusion alarm with:
//  - Real Time clock, for automatic activation of alarm during the night and week-ends
//  - PIR motion sensor (6 meters)
//  - Ethernet connection, to send iPhone notification (using app Prowl)
//  by Omar Reis - Public domain app
//  -  uses Xenji ProwlPHP - https://github.com/xenji/ProwlPHP

#include <Wire.h>
#include <DS1307.h>
#include <EtherCard.h>

/*
about set time using Arduino serial:
 format: year,month,day,week,hour,min,sec
 example: 14,03,25,02,13,55,10   2014.03.25 tuesday 13:55:10
 ver http://www.dfrobot.com/wiki/index.php/Real_Time_Clock_Module_%28DS1307%29_V1.1_%28SKU:DFR0151%29
 This is a demo of the RBBB running as webserver with the Ether Card
 2010-05-28 <jc@wippler.nl> http://opensource.org/licenses/mit-license.php
 */

// configure the following fields for your particular setup ------------------------------------------
static byte myip[] = { 192,168,10,123 };  // static ip address of your Arduino Burglar Alarm
static byte gwip[] = { 192,168,10,1 };   // static ip address of local gateway (ex: local router IP)
// ethernet interface mac address, must be unique on the LAN
static byte mymac[] = { 0x74,0x69,0x69,0x2D,0x37,0x33 };   // ethernet interface mac address
// change MAC if two alarms in the same network
// site where your ProwlPHP pages are hosted
const  char website[] PROGMEM = "www.yoursite.com"; // website name
static byte hisip[] = { 200,123,123,123 };  // website ip address(static IP corresp to 'www.yoursite.com')
const  char phpFile[] PROGMEM = "/MySecret/Folder123/myoffice.php"; // secret path to your prowlPHP page
// (mantain a secret, otherwise someone else can trigger false alarms)
float timeAlarmOff=6.0;       // during weekdays, alarm is on before that (and off during business hours)
float timeAlarmOn=21.0;       // during weekdays, alarm is on after that
//  /config ------------------------------------------------------------------------------------------

String comdata = "";
int mark=0;
int  rtc[7];  //store the current time data
byte rr[7];  //store the set time data
int  ledPin =  13; //light pin
//initial light
int  IRSensor = 0;

int pinIRSensor = 3;
// RTC time vars
float theTime = 0;
float timeDisparoAlarm = 0;
int   dayOfWeek = 0;
char strbuf[20];              // string buffer
byte Ethernet::buffer[500];   // tcp/ip receive buffer

boolean alarmOn = false;

// called when the client request is complete
static void my_result_cb (byte status, word off, word len) {
  Serial.print("<<< reply ");
  Serial.println((const char*) Ethernet::buffer + off);
}

//out date/time to Serial
static void showTime() {
  RTC.get(rtc, true);    // get current time
  Serial.print(rtc[6]);   //ano
  Serial.print("/");
  Serial.print(rtc[5]);   //mes
  Serial.print("/");
  Serial.print(rtc[4]);   //dia

  switch (rtc[3]) {
    case 1: Serial.print(" sun "); break;
    case 2: Serial.print(" mon "); break;
    case 3: Serial.print(" tue "); break;
    case 4: Serial.print(" wed "); break;
    case 5: Serial.print(" thu "); break;
    case 6: Serial.print(" fri "); break;
    case 7: Serial.print(" sat "); break;
    default: Serial.print(" ??  ");
  }
  Serial.print(rtc[2]);  //hh
  Serial.print(":");
  Serial.print(rtc[1]);  //nn
  Serial.print(":");
  Serial.println(rtc[0]); //ss
}

void setup()                 // <-------------------------- setup()
{
  DDRC |= _BV(2) | _BV(3);   // POWER:Vcc Gnd
  PORTC |= _BV(3);           // VCC PINC3

  pinMode(ledPin, OUTPUT);      //Arduino UNO inboard LED signals sensor trigger

  pinMode (pinIRSensor, INPUT); //PIR Sensor input

  //initial serial baudrate
  Serial.begin(9600);
  Serial.println("----------Pardawl----------");
  Serial.println("intrusion alarm with realtime clock and iPhone notifications");

  showTime(); //show RTC date/time

  // uncomment below to set date/time in the first run. Then comment and recompile.
  //    RTC.stop();                //stop rtc time
  //    RTC.set(DS1307_SEC, 30);
  //    RTC.set(DS1307_MIN, 24);
  //    RTC.set(DS1307_HR, 9);
  //    RTC.set(DS1307_DOW, 2);    //Sunday=1, Monday=2 etc
  //    RTC.set(DS1307_DATE, 16);
  //    RTC.set(DS1307_MTH, 06);
  //    RTC.set(DS1307_YR, 14);
  //    RTC.start();               //restart rtc time

  RTC.SetOutput(DS1307_SQW32KHZ);

  // ethernet start
  if (ether.begin(sizeof Ethernet::buffer, mymac) == 0)
    Serial.println( "Failed to access Ethernet controller");

  ether.staticSetup(myip, gwip);
  ether.copyIp(ether.hisip, hisip);
  ether.printIp("Server: ", ether.hisip);
  while (ether.clientWaitingGw())
    ether.packetLoop(ether.packetReceive());
  Serial.println("Gateway found");
}

void blinkLED() {
  digitalWrite(ledPin, HIGH);
  delay(500);
  digitalWrite(ledPin, LOW);
  delay(500);
}

// alarm ligado das 19:00 as 7:00 e nos fins de semana..
boolean alarmLigado() {
   boolean fimDeSemana = (dayOfWeek==1) || (dayOfWeek==7);
   boolean deNoite = (theTime<timeAlarmOff) || (theTime>timeAlarmOn);
   // during weekdays, alarm is turned on during the night and off during bussiness hours
   return (deNoite || fimDeSemana);
}

// set clock with serial data
void setClockDateTime() {
  //read serial data to set clock
  int j = 0;
  while (Serial.available() > 0)  {
    comdata += char(Serial.read());
    delay(2);
    mark = 1;
  }
  //if data is all collected,then parse it
  if (mark == 1) {
    Serial.println(comdata);
    Serial.println(comdata.length());
    //parse data
    for (int i = 0; i < comdata.length() ; i++) {
      //if the byte is ',' jump it,and parse next value
      if (comdata[i] == ',') { j++; }
      else { rr[j] = rr[j] * 10 + (comdata[i] - '0'); }
    }
    comdata = String("");
    RTC.stop();
    RTC.set(DS1307_SEC, rr[6]);
    RTC.set(DS1307_MIN, rr[5]);
    RTC.set(DS1307_HR, rr[4]);
    RTC.set(DS1307_DOW, rr[3]);
    RTC.set(DS1307_DATE, rr[2]);
    RTC.set(DS1307_MTH, rr[1]);
    RTC.set(DS1307_YR, rr[0]);
    RTC.start();
    mark = 0;
  }
}

void loop()   // <------------------------------------ loop()
{
  //get IR sensor input
  // showTime();
  IRSensor = digitalRead(pinIRSensor);
  // Serial.print("IR Sensor:");
  // Serial.println(IRSensor);

  //get current time
  RTC.get(rtc, true);

  theTime = (float)(rtc[0] + rtc[1]*60.0 + rtc[2]*3600.0)/(3600.0); //seconds --> hrs
  dayOfWeek = rtc[3];

  if (IRSensor == 1) { blinkLED(); }  //para ajuste da sensibilidade

  alarmOn = (IRSensor == 1) && alarmLigado();

  ether.packetLoop(ether.packetReceive()); //receive any data

  if (alarmOn)  {
    if (timeDisparoAlarm==0) {
      Serial.print("alarm triggered at ");
      showTime();
      timeDisparoAlarm = theTime;
      Serial.println("\n notify Prowl");
      ether.browseUrl( phpFile, "", website, my_result_cb);
    };
  } else {
    delay(500);
  }
  //resseta alarm apos 10 min
  if (timeDisparoAlarm != 0) {
    if (theTime-timeDisparoAlarm > 0.017) {
      timeDisparoAlarm = 0;
      Serial.print("alarm rearmed at ");
      showTime();
    }
  }

  //uncomment below to set time using serial ...
  // if (Serial.available() > 0) {
  //   setClockDateTime();
  // }

}
